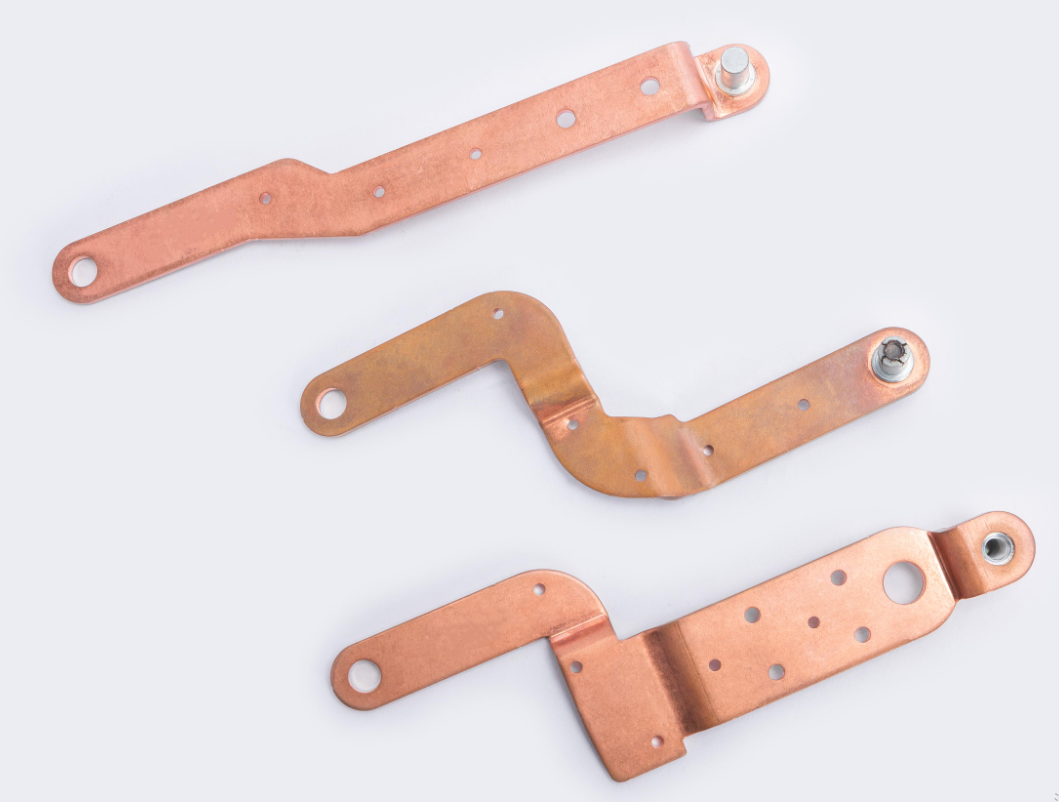

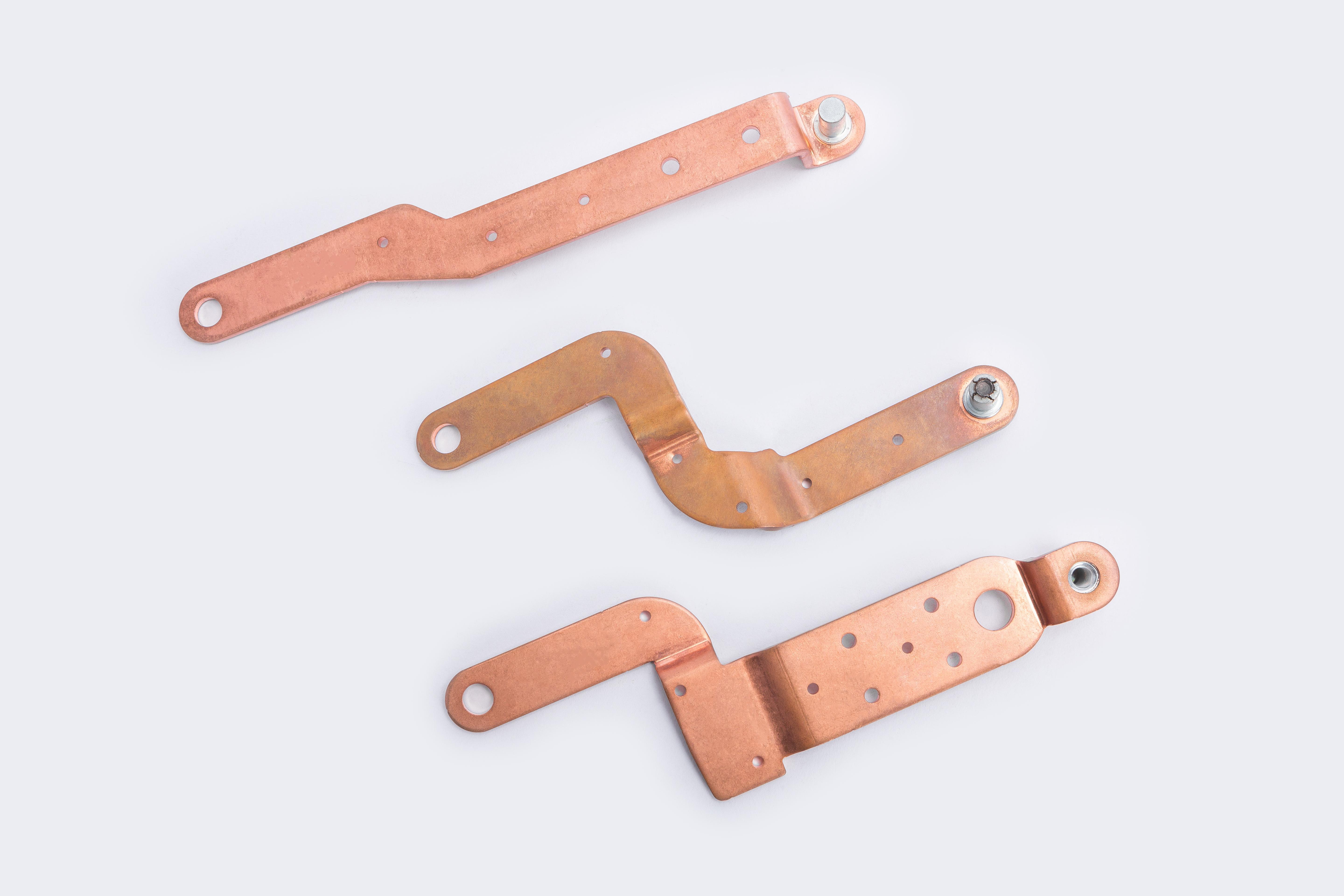

Name: 17 series copper conductor
Brand: Woosung
Availability: InStock
Rating: 5 (1 reviews)

Description

The 17 series copper conductor offers precision stamping quality for compact, high-power motors. This metal stamping part uses high-purity copper with tin plating for durability and excellent conductivity.

Product Description

Optimized Design for Compact Motor Assemblies
The 17 series copper conductor is engineered to meet the demanding needs of manufacturers focusing on compact, high-power motor systems, particularly in laptop applications. As a specially tailored metal stamping part, it serves electrical engineers and procurement professionals requiring reliable conduction paths in tight spaces. Produced by a reputed metal stamping manufacturer, it integrates seamlessly into motor modules, providing consistent and customizable solutions. This conductor supports precise engineering requirements and is suited for use where high purity and dimensional accuracy are critical for system reliability and performance.

Material Excellence and Precise Manufacturing Specifications
Constructed from high-purity red copper T2, the conductor features a tin-plated surface to resist oxidation, enhancing product longevity. Its dimensions of 25.0 × 5.0 mm with a 1.5 mm thickness ensure sufficient mechanical rigidity while minimizing electrical resistance under high current loads. The extrusion, cutting, and tin plating processes underscore advanced precision stamping techniques applied by expert precision metal stamping manufacturers. These technical attributes collectively contribute to reduced heat generation, improved electrical conductivity, and structurally sound metal stamping parts critical in high-performance motor designs.

Industry Relevance and Operational Value
This conductor is designed for use primarily in laptop-scale motors where space constraints and power density are significant. Its introduction into product assemblies enhances current-carrying capacity and electrical reliability, non-negotiable metrics in consumer electronics manufacturing. As part of a broader metal stamping portfolio, it exemplifies how custom metal stamping services can deliver adaptive and specification-driven components to automotive, communications, and appliance industries. By facilitating improved workflow integration and maintenance compatibility, it represents a critical element in high-precision motor and electromechanical systems.

Specifications:

Product Model	52170000163	Picture
Production Process	Extrusion, cutting, tin plating
Product Specifications	25.05.01.5
Product Material	Red copper T2
Application areas	For high-power conduction of small motors in laptops
Notes	No special notes

Core Features:

High purity of T2 red copper, excellent electrical conductivity, 25.0*5.0 wide surface design reduces current loss; Tin plating prevents oxidation, 1.5mm thickness ensures structural strength, suitable for high-power conductive scenarios.

Product Advantages

Structural Efficiency and Design Integration
The 17 series copper conductor benefits from a carefully evaluated cross-section and advanced tin plating that not only provides oxidation resistance but also strengthens mechanical interfaces. These design attributes are central to the advantage offered by precision stamping for tight motor assemblies, enabling modular integration with other metal stamping parts. The consistency achieved by this metal stamping manufacturer ensures minimal variance during mass production, supporting OEMs in meeting strict engineering tolerances. A robust yet adaptable design framework allows this conductor to be customized easily through custom metal stamping services, catering to evolving customer-specific geometries and assembly requirements.

Performance Reliability and Application Usability
From a functional perspective, this conductor reduces electrical losses and thermal stress by employing superior material quality and precise dimensional control. The tin-plated finish improves solderability, simplifying assembly processes and increasing throughput efficiency. Its performance stability under high current conditions directly translates to longer motor lifespan and reduced maintenance costs. Metal stamping parts produced under such stringent quality standards deliver predictable operational benefits to manufacturing partners, enabling streamlined inventory management and reliable deployment in volume production contexts. This reliability supports consistent user outcomes in demanding applications where electrical and mechanical integrity are paramount.

Use Scenarios

Integration in Laptop Motor Power Path Testing
Within the electronics manufacturing environment, the conductor is extensively utilized during design validation and current-carrying capacity testing for notebook motors. Here, it functions as a critical busbar component enabling engineers to simulate and verify high-power conduction under compact spatial conditions. Its precision stamping and customizable dimensions support iterative prototype adjustments, ensuring compliance with thermal and mechanical load requirements. The conductor’s oxidation resistance afforded by tin plating guarantees stable electrical performance throughout testing cycles. Consequently, it plays a vital role in quality assurance workflows, bridging product development and volume manufacturing phases by meeting stringent technical specifications.

Role in Compact Motor Module Manufacturing
In assembly lines focused on compact motor modules, this copper conductor is integrated as a core metal stamping part that ensures efficient electrical connectivity. Its high-purity copper material and robust extrusion process align with automated production systems emphasizing consistency and repeatability. The conductor’s thickness and cross-sectional strength provide essential mechanical support while facilitating thermal dissipation, reducing risk of premature failure. Custom metal stamping services enable adaptation to evolving module designs, enhancing supply chain flexibility. This product thus supports production scalability and quality adherence, crucial for industries such as consumer electronics and automotive components where precision and reliability are mandatory.

FAQ

Is the 17 series copper conductor customizable to specific design needs?
Yes, we offer full customization of the 17 series copper conductor to meet your project requirements. Our expertise in precision stamping and metal component manufacturing allows us to adapt dimensions and plating processes for optimal fit and performance in various motor assemblies.

What materials make up the 17 series copper conductor, and how do they benefit its function?
Our 17 series copper conductor is made from high-purity red copper T2 with a tin-plated surface. This combination ensures superior electrical conductivity and oxidation resistance, which minimizes current loss and extends product life in compact laptop motors.

How does your metal stamping process ensure the quality and precision of the copper conductor?
We use advanced extrusion, cutting, and tin plating techniques within our certified metal stamping production lines. This guarantees precise cross-section dimensions and a smooth surface finish, essential to reducing electrical resistance and ensuring reliable high-power conduction.

What logistical and production capabilities support large-scale orders for your copper conductors?
With over 800 employees across facilities in China and Mexico, a 90% automation rate, and annual production exceeding 80 million units, we efficiently handle mass production while maintaining tight quality controls, helping you meet your supply demands reliably and on schedule.
