Product Description
Functional Integration as the "Power Heart" of New Energy Vehicles
As the core power component of new energy vehicles, the inverter undertakes the critical task of real-time DC-to-AC conversion, serving as the "power heart" of the vehicle. It converts the DC power stored in the vehicle battery into AC power that can drive the motor, thereby controlling motor operation and realizing vehicle propulsion. This function is the core link connecting the battery and the motor, directly determining the power performance, energy conversion efficiency and driving experience of new energy vehicles.
Tailored for new energy vehicles, the inverter is designed to adapt to the complex working environment of the vehicle, ensuring stable and efficient energy conversion even under harsh conditions such as high temperature, vibration and voltage fluctuation. Its reasonable structural design and high-quality material combination ensure reliable operation, providing continuous and stable power support for the vehicle, and laying a solid foundation for the safe and smooth driving of new energy vehicles.
Technical Precision and Manufacturing Specifications
Manufactured via coated molding process, this inverter achieves strict dimensional control and excellent overall performance, with a precise specification of 189*164*50(mm), which is perfectly matched with the installation space of new energy vehicles, ensuring compact layout and easy assembly.
The product adopts a high-performance material combination of PA66 GF35 R535HR BK (polyamide/nylon) and C10200 red copper. PA66 GF35 R535HR BK provides excellent insulation, high temperature resistance and mechanical stability, effectively isolating the internal conductive components and ensuring safe operation. C10200 red copper has superior electrical conductivity, which optimizes energy conversion efficiency and reduces power loss during the conversion process. The coated molding process forms a complete and uniform insulating layer, enhancing the product's sealing and corrosion resistance, and ensuring long-term stable operation in the harsh automotive environment.
Industrial Application and Manufacturing Value
Widely used in new energy vehicles, this inverter is an indispensable core component in the power system of various new energy vehicle models, including pure electric vehicles and plug-in hybrid vehicles. It is closely integrated with the vehicle battery, motor and control system, realizing efficient energy conversion and power transmission, and directly affecting the vehicle's power performance, endurance and energy utilization rate.
The professional coated molding process supports mass production with stable quality, minimal dimensional deviation and consistent performance, reducing assembly difficulty and later maintenance costs. The high-quality material combination and mature manufacturing process ensure the inverter's long service life and high reliability, reducing the failure rate of the vehicle power system, and providing a reliable guarantee for the large-scale promotion and application of new energy vehicles. As the "power heart" of new energy vehicles, it plays a key role in promoting the development of the new energy automotive industry.
Product Specifications

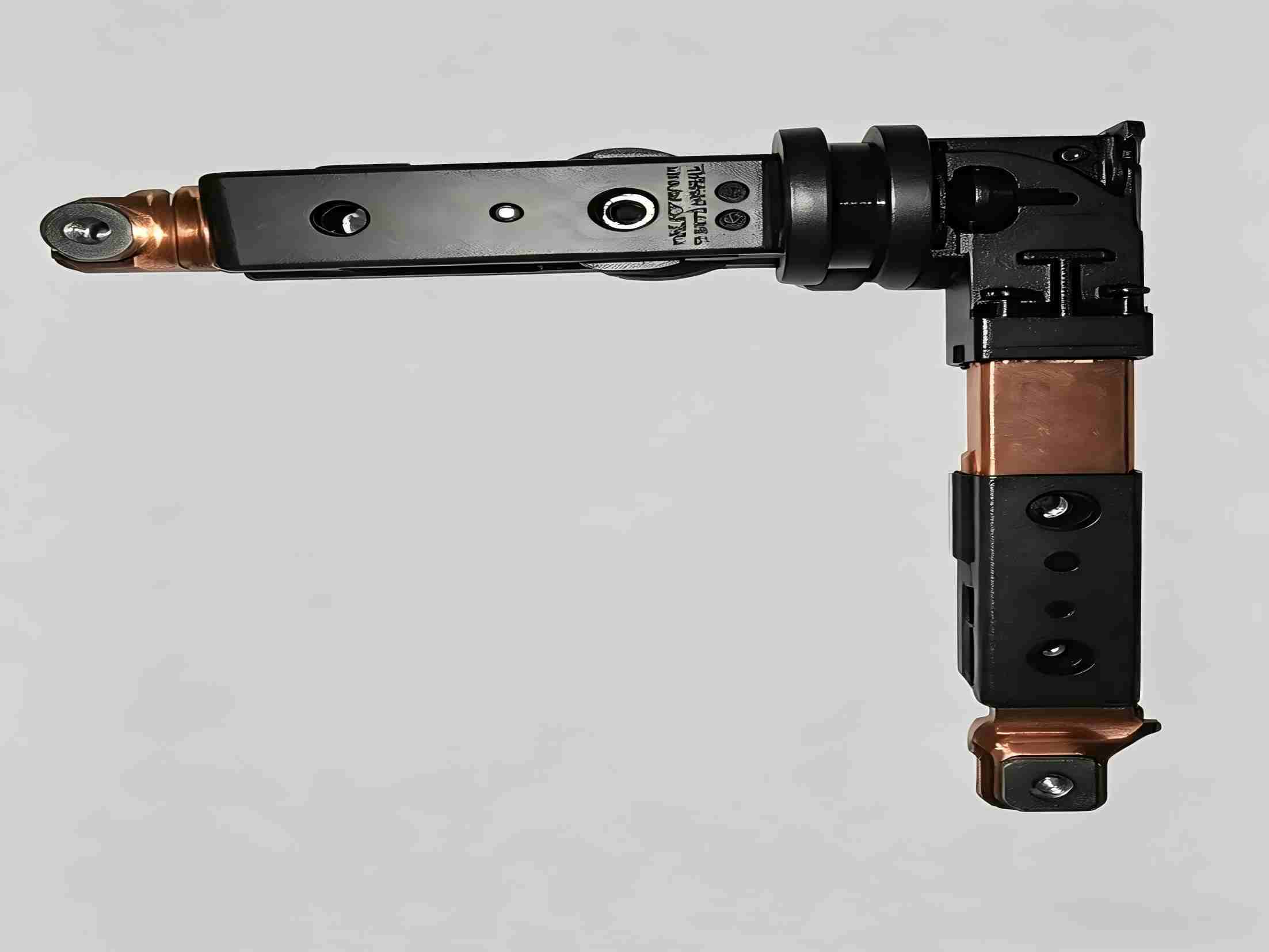

roduct Name: New‑Energy Vehicle Inverter
Production process: Coated Molding
Overall dimension: 189
16450(mm)
Raw material: PA66 GF35 R535HR BK + C10200 Red Copper
Application: New Energy Vehicles
Notes: No special notes
Core Features
The inverter performs real-time DC-to-AC conversion to control motor operation. As the "power heart" of new energy vehicles, it converts battery DC power into AC power to drive the motor, enabling vehicle propulsion.
Product Advantages
High-Quality Material Combination, Reliable Performance
Adopting the combination of PA66 GF35 R535HR BK (polyamide/nylon) and C10200 red copper, the product integrates excellent insulation, high temperature resistance and high electrical conductivity. PA66 GF35 R535HR BK ensures safe insulation and structural stability, while C10200 red copper optimizes energy conversion efficiency, reducing power loss. The material combination is highly adaptable to the harsh working environment of new energy vehicles, ensuring long-term stable operation of the inverter.
Professional Coated Molding, Excellent Insulation & Sealing
Produced through coated molding process, the product forms a complete and uniform insulating layer, which effectively isolates the internal conductive components from the external environment, avoiding short circuits and electric leakage caused by external interference, and improving the safety and reliability of the product. The molding process is precise, ensuring consistent product dimensions and stable quality, which is conducive to mass production and assembly.
Efficient DC-to-AC Conversion, Core Power Support
As the "power heart" of new energy vehicles, the inverter can complete real-time and efficient DC-to-AC conversion, quickly converting the DC power of the battery into AC power that can drive the motor. It has high conversion efficiency, low power loss, and can stably control motor operation, providing strong power support for vehicle propulsion, and improving the vehicle's power performance and energy utilization rate.
Automotive-Grade Reliability & Wide Adaptability
Tailored for new energy vehicles, the inverter has strong environmental adaptability, can maintain stable performance in harsh automotive environments such as high temperature, low temperature, vibration and voltage fluctuation, and meets the reliability standards of automotive-grade components. Its compact structural design (189*164*50mm) is suitable for the limited installation space of new energy vehicles, realizing compact layout and easy assembly.
Use Scenarios
Power Conversion in New Energy Vehicle Power Systems
Mainly used in the power system of new energy vehicles, as the core component for DC-to-AC conversion, it connects the vehicle battery and motor, converts battery DC power into AC power to drive the motor, controls motor operation and enables vehicle propulsion. It is suitable for various new energy vehicle models, including pure electric vehicles and plug-in hybrid vehicles, and is an indispensable core part of the vehicle power system.
Stable Operation in Complex Vehicle Working Conditions
Applicable to the harsh working environment inside new energy vehicles, including high temperature, low temperature, continuous vibration and voltage fluctuation. The high-quality material combination, professional coated molding process and efficient conversion performance ensure that the inverter can maintain stable DC-to-AC conversion and motor control performance, avoid failure, and guarantee the safe and smooth operation of the vehicle.
FAQ
Q1: What material is this inverter made of?
A: This inverter adopts a composite material combination of PA66 GF35 R535HR BK (polyamide/nylon) and C10200 red copper, which integrates excellent insulation, high temperature resistance and high electrical conductivity.
Q2: What is the production process of this inverter?
A: It is produced through coated molding process, which ensures excellent insulation, sealing performance and dimensional accuracy of the product, and is suitable for mass production.
Q3: What are the product specifications and main application scenarios?
A: The product specification is 189*164*50(mm), and it is mainly used in new energy vehicles, serving as the "power heart" to complete DC-to-AC conversion and drive motor operation.
Q4: What is the core function of the inverter in new energy vehicles?
A: Its core function is to perform real-time DC-to-AC conversion, converting the DC power of the vehicle battery into AC power to drive the motor, control motor operation and enable vehicle propulsion, which is the key link of the vehicle power system.
