Purpose‑Built Housing Structure for Laptop Small‑Motor Assembly.

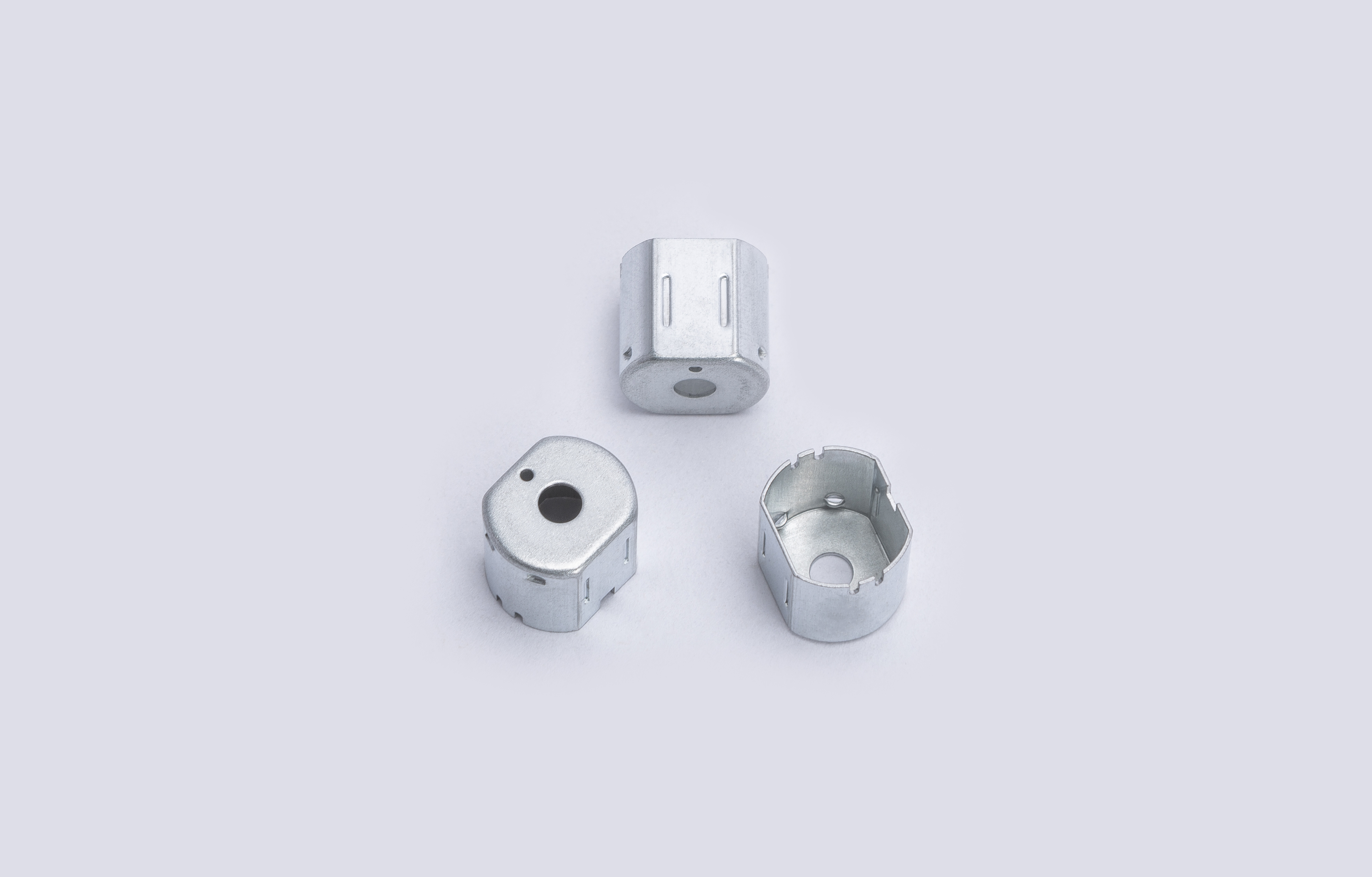

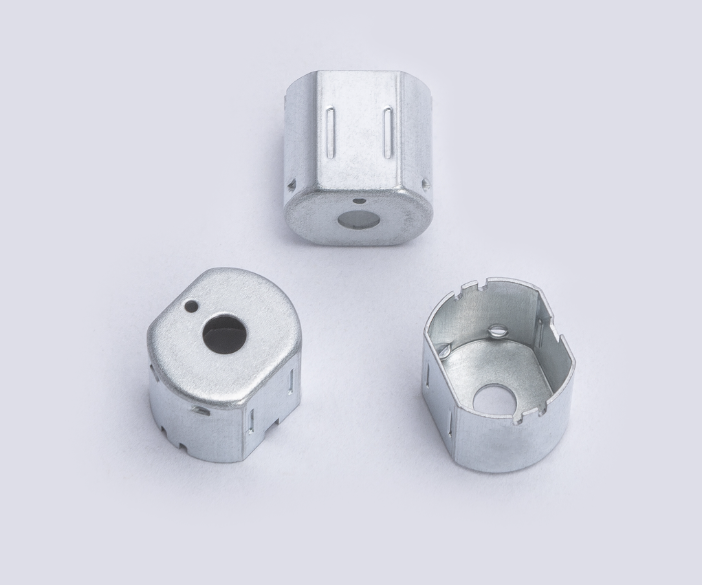

Our N10 Housing (Model:52170000098) is a precision‑stamped shell component for laptop small motors. Made of 0.8T SECD‑O electrolytic plate and processed by continuous stamping plus washing‑drying, it delivers stable shell rigidity and high‑clean surfaces, providing mechanical protection and positioning support for notebook small‑motor assemblies.
This N10 Housing (Model:52170000098) is a precision stamped motor housing tailored for laptop small motors. It is manufactured from 0.8T SECD‑O electrolytic steel sheet via continuous stamping, followed by washing and drying post‑processing. As the outer shell structure of small motor, it provides mechanical protection for internal motor components, supports component positioning and assembly, and suppresses vibration noise generated during motor operation. It meets the requirements of lightweight and compact installation inside thin‑and‑light laptops.
As a dedicated housing for laptop small motors, it adopts dimension Φ19.8*10.0 to perfectly match the outer contour of notebook small‑motor assemblies. Continuous stamping ensures high dimensional consistency in mass production. Washing‑drying removes stamping oil and metal debris, achieving clean inner‑outer surface and avoiding contamination to motor internal parts.
Technical Precision and Manufacturing Specifications
The housing is formed by mature continuous stamping process, achieving complex shell contour forming and strict dimensional tolerance control. Subsequent washing and drying procedures thoroughly clear surface stamping oil, metal scraps and other contaminants, guaranteeing high surface cleanliness.
Raw material is SECD‑O electrolytic plate with thickness of 0.8T. The material has excellent stamping formability, moderate mechanical strength and basic rust‑proof performance. After deep‑drawing and stamping forming, the housing maintains stable shell rigidity, resisting ordinary assembly extrusion without deformation. The specification Φ19.8*10.0 is optimized for overall assembly of laptop small‑motors for accurate part fitting.
Industrial Application and Manufacturing Value
This N10 Housing is specially used as shell part for laptop small motors. Core strengths: SECD‑O 0.8T electrolytic plate material for stable shell rigidity; continuous stamping process for high batch dimensional consistency; washing & drying treatment for high‑clean inner and outer surfaces; housing‑type structural design for laptop small‑motor built‑in assembly. It protects internal motor structures, improves whole‑motor stability, and reduces abnormal noise risk.
Continuous stamping adapts to large‑volume mass‑production demand with stable batch quality. Washing‑drying meets the high‑cleanliness requirement of consumer‑electronic motor accessories. As customized stamping shell hardware, it satisfies notebook brand’s strict standards for small‑motor structural accessories.
Purpose‑Built Housing Structure for Laptop Small‑Motor Assembly
Product Specifications
Product Model: 52170000098
Production Process: Continuous stamping, washing and drying
Product Specifications: Φ19.8*10.0
Product Material: Electrolytic SECD O material (0.8T)
Application Field: Used for laptop small motors
Notes: No special notes
Product Advantages
SECD‑O 0.8T Electrolytic Plate Shell Material
0.8T‑thickness SECD‑O electrolytic steel sheet features good deep‑draw forming performance and proper rigidity. After forming, the housing is resistant to ordinary assembly pressure, not easy to dent or deform, and has basic anti‑rust performance for long‑term built‑in use inside laptops.
Continuous Stamping for Excellent Batch Consistency
Continuous stamping forming keeps unified outline and dimension for each housing. Small tolerance deviation of mass‑produced parts ensures good interchangeability on notebook assembly lines and lifts production assembly efficiency.
Washing & Drying Ensures High Surface Cleanliness
Washing and drying removes stamping oil residue and metal fine scraps. No foreign contaminants remain inside the housing, preventing impurities from affecting motor performance, complying with cleanliness standards of electronic motor components.
Overall dimension Φ19.8*10.0 is designed for laptop small‑motor assembly. The enclosed shell provides physical protection for motor inner parts while controlling space occupation, adapting to compact internal layout of thin‑and‑light notebooks.
FAQ
Q1: What is the main function of N10 Housing?
A: It serves as the outer housing of laptop small motor. It protects internal motor components, provides positioning reference for assembling internal parts, and suppresses vibration noise during motor running.
Q2: Why choose SECD‑O 0.8T electrolytic plate as raw material?
A: SECD‑O material has outstanding deep‑drawing stamping performance, suitable for complex shell forming. 0.8T thickness balances shell rigidity and lightweight demand, with basic rust‑proof performance for electronic built‑in parts.
Q3: What effect does washing and drying process bring?
A: This process removes stamping oil, metal debris and surface dirt generated in stamping. It avoids residual impurities falling into motor interior and causing abnormal operation, satisfying consumer‑electronic component cleanliness requirements.
Q4: Is this housing customizable?
A: This model is dedicated for laptop small‑motor with fixed specification Φ19.8*10.0. For other motor projects, we support drawing‑based customized stamping housing development.
Q5: How about batch consistency of continuous‑stamping housing?
A: Continuous stamping realizes one‑time high‑precision forming. Batch dimensional deviation is well‑controlled, parts have good interchangeability, which is suitable for large‑volume notebook production‑line assembly.
