Product Description
Functional Role for Automotive Electronic Circuit Connection

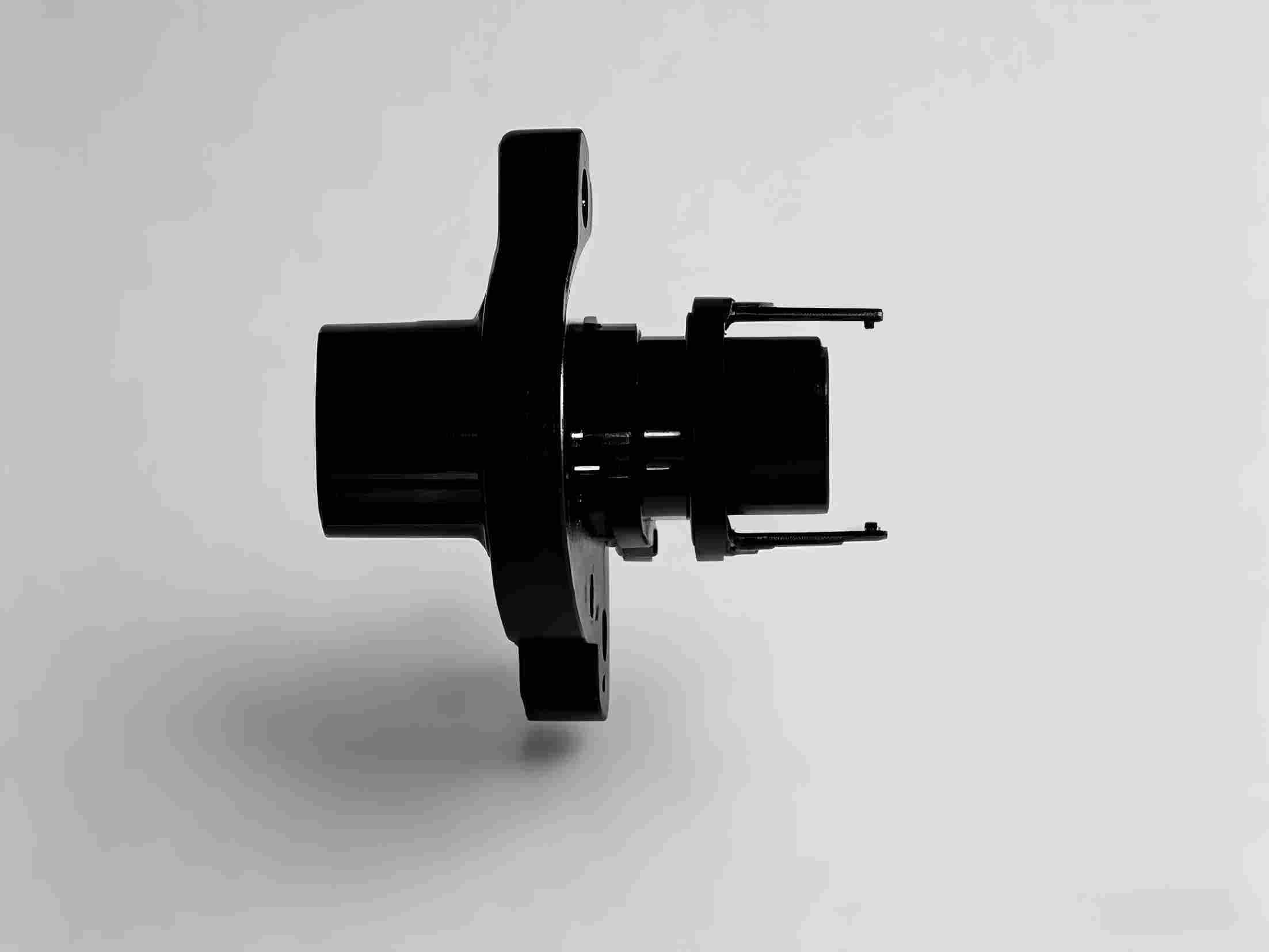

This connector serves as a key component for circuit connection and signal transmission in automotive electronic systems. It realizes reliable electrical connection between wiring harnesses and electronic components, ensuring stable current and signal transmission under complex vehicle conditions. The integrated structure formed by injection molding and terminal assembly simplifies assembly, improves connection consistency, and reduces failure risks caused by poor contact. It is an important basic part to ensure the normal operation of automotive electronic and electrical systems.
Advanced Material Composition and Technical Specifications
Produced by injection molding combined with precise terminal assembly, the connector adopts high-performance PBT plastic with excellent insulation and heat resistance, matched with high-conductivity brass terminals. The product has a compact dimension of 30.0×15.0×8.0, suitable for installation in limited space with dense wiring harnesses. The structural design ensures a plug-and-pull life of not less than 1000 times, maintaining stable contact performance after repeated use, fully meeting the reliability requirements of automotive applications.
Industry Applications and Practical Value
Widely used for circuit connection in automotive electronic systems, including body electronics, control modules, sensors and lighting systems. Its compact structure adapts to the layout characteristics of dense automotive wiring harnesses, effectively saving installation space. The combination of high-insulation plastic and high-conductivity terminals ensures safe and stable circuit connection, helping to improve the overall stability and safety of automotive electrical systems, and supporting efficient assembly of automotive production lines.
Product Advantages
Excellent Insulation & High Temperature Resistance
The PBT plastic material provides outstanding insulation performance and high temperature resistance, effectively avoiding short circuits and leakage risks. It can maintain stable mechanical and electrical properties in high-temperature environments inside automobiles, ensuring long-term safe use.
High Conductivity & Stable Contact Performance
Brass terminals feature excellent electrical conductivity, low contact resistance and stable transmission performance. The reasonable contact structure design ensures reliable connection under vibration, and the plug-and-pull life reaches more than 1000 times, with outstanding durability.
Compact Design & Strong Environmental Adaptability
With a compact size of 30.0×15.0×8.0, the connector is ideal for dense automotive wiring harness environments. The integrated injection molding and assembly structure ensures high dimensional consistency, stable quality and easy installation, fully adapting to the harsh working conditions of automobiles.
Use Scenarios
Circuit Connection for Automotive Electronic Components
Mainly used for the connection of automotive electronic components such as control units, sensors, actuators and lighting modules. It provides safe and reliable circuit docking for automotive wiring harnesses, ensuring stable signal and current transmission during driving.
Wiring Harness Connection in Dense Vehicle Space
Suitable for narrow and dense installation spaces such as automotive instrument panels, door panels and engine compartments. Its compact structure effectively saves layout space, and its anti-vibration and plug-resistant characteristics ensure long-term stable connection in complex driving environments.
FAQ
What materials are used in this connector?
The connector adopts PBT plastic for insulation structure and brass for conductive terminals, with good insulation, heat resistance and electrical conductivity.
What is the product size and service performance?
The product dimension is 30.0×15.0×8.0, with a plug-and-pull life ≥1000 times, suitable for dense automotive wiring harness environments.
What is the production process of the connector?
The product is manufactured through injection molding and precise terminal assembly to ensure stable structure and reliable contact performance.
What is the main application of this product?
It is mainly used for circuit connection of automotive electronic systems, adapting to various automotive electronic components and wiring harness docking scenarios.
