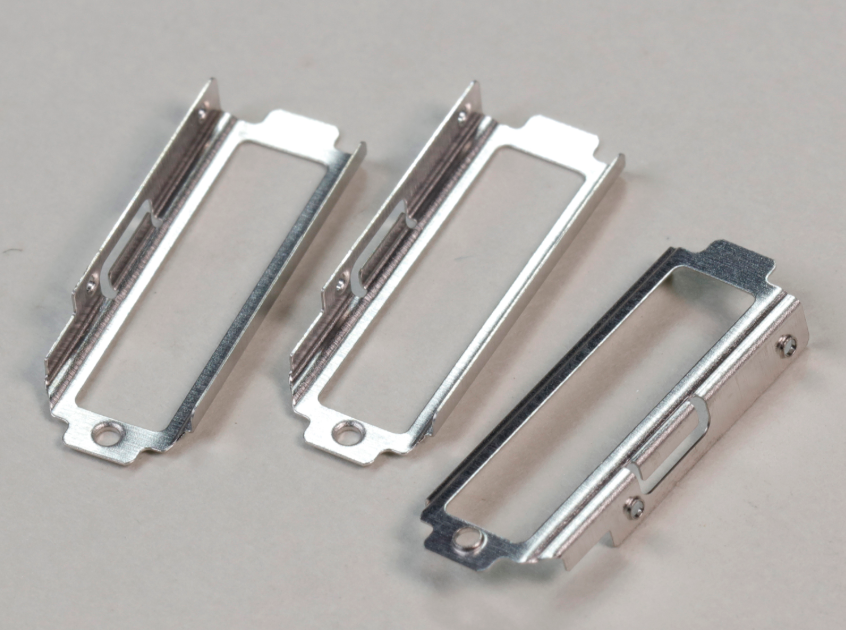

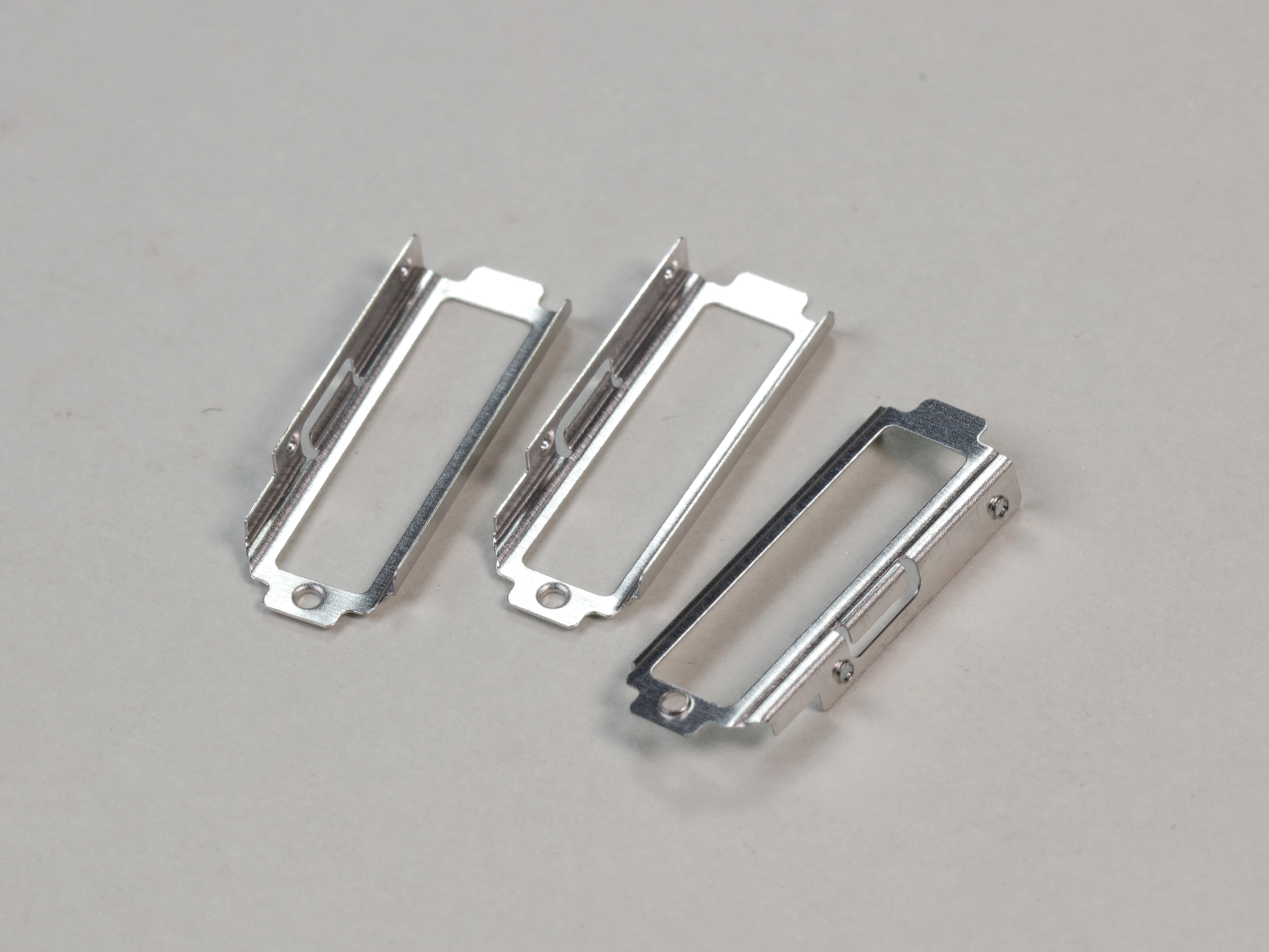

This U‑Shaped Bracket (Model:52170000152) is a precision stamping structural part specially engineered for laptop small‑motor fixation. It is manufactured by continuous stamping followed by washing and drying post‑treatment, adopting SECC electrolytic plate as raw material. The part delivers stable structural rigidity and flat surface quality. It can hold and fix small motor inside limited narrow space of laptop, preventing motor displacement and vibration noise during device operation, and supporting reliable long‑time running of laptop motor assemblies.
As a dedicated fixing bracket for laptop small motors, it comes with precise dimension Φ、12.05.03.0, perfectly matching the inner installation space of notebook computers. Continuous stamping ensures high consistency of batch products; washing and drying removes surface oil and impurities to keep clean surface condition. It meets compact assembly requirements of consumer electronic products, provides firm positioning support for laptop small‑motors.
Technical Precision and Manufacturing Specifications
Produced by mature continuous stamping process, this U‑Shaped Bracket realizes high‑efficiency forming and strict dimensional control. Subsequent washing and drying procedures clear stamping oil, metal debris and surface contaminants to guarantee clean surface without residual impurities.
The raw material is SECC electrolytic plate, which possesses moderate hardness, good formability and basic anti‑rust performance. It maintains stable structural strength after bending and stamping forming, not easy to deform under normal assembly stress. With specification Φ、12.05.03.0, the structural outline is optimized for laptop small‑motor installation, realizing accurate positioning and clamping.
Industrial Application and Manufacturing Value
This U‑Shaped Bracket is specially applied for laptop small‑motor fixation. Core strengths: SECC electrolytic plate material for stable structural performance; continuous stamping process for high dimensional consistency; washing‑drying treatment for clean surface; tailor‑made structure adapting to laptop small‑motor assembly. It effectively fixes the motor unit, reduces vibration shift risk, improves running stability of notebook small‑motor modules.
The continuous stamping process is suitable for large‑volume mass production with stable batch performance. Washing and drying ensures surface cleanness to avoid contamination inside precision electronic products. As custom stamping hardware for consumer electronics, it satisfies high‑standard assembly requirements of laptop manufacturers for internal structural accessories.
Continuous Stamping Process, High Dimensional Consistency
Washing & Drying Treatment, Clean Surface Without Residues
Custom‑Shaped Structure, Specially for Laptop Small‑Motor Fixation
Product Specifications
Product Model: 52170000152
Production Process: Continuous stamping, washing and drying
Product Specifications: Φ、12.05.03.0
Product Material: Electrolytic plate SECC
Application areas: For laptop small motor fixation
Notes: No special notes
Application Fields
Laptop Small‑Motor Fixation
This U‑Shaped Bracket is exclusively used for fixing small motors inside laptops. It provides stable clamping and positioning in the narrow internal space of notebooks, restrains motor displacement caused by vibration, lowers running noise, and ensures safe and stable operation of laptop motor components.
Product Advantages
Reliable SECC Electrolytic Plate Base Material
SECC electrolytic plate has excellent stamping formability and proper structural hardness. After forming, the bracket keeps stable rigidity, resisting slight assembly pressure without deformation, with basic rust‑proof property, fitting long‑term built‑in usage inside consumer electronic devices.
Continuous Stamping for High Batch Consistency
Adopting continuous stamping forming technology, each bracket keeps uniform outline and dimension. Mass‑produced parts have tiny tolerance deviation, which guarantees interchangeability during laptop assembly and improves production line assembly efficiency.
Washing & Drying to Keep Surface Clean
Washing and drying process removes stamping oil, metal scraps and surface dirt. No residual contaminants will pollute other precision electronic components inside the laptop, complying with cleanliness requirements of consumer‑electronic internal accessories.
Purpose‑Built Structure for Notebook Compact Installation
U‑shaped outline is tailor‑made for laptop small‑motor layout. It occupies little inner space while realizing reliable motor clamping and fixation, matching the compact structural design of modern thin‑and‑light notebooks.
Use Scenarios
Internal Fixing of Notebook Small‑Motors
Installed inside laptops to clamp and fix small‑motor assemblies. Effectively buffer vibration during equipment operation, avoid motor offset, reduce abnormal noise, and support stable working of notebook rotating or driving motors.
